just for reference

Injection Mold Strength Calculator

说明：输入压力单位为 kg/cm²。程序内部会自动换算为 kg/mm² 进行计算。建议最大允许挠度不超过 0.1 mm。

复制

1. Square Cavity Bottom (No Frame Structure)

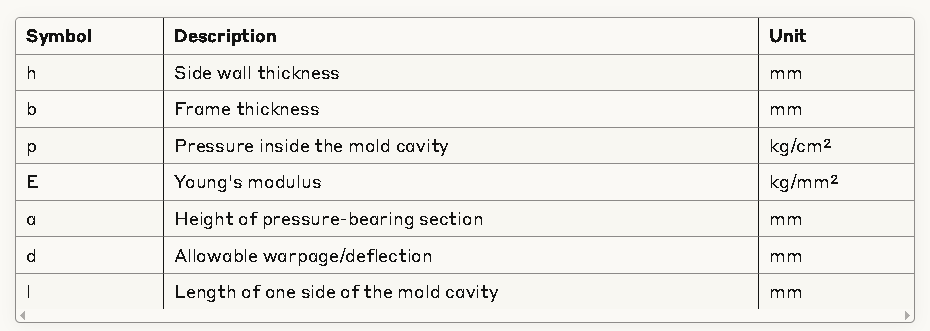

Pressure p (kg/cm²): Pressure bearing height a (mm): Cavity side length l (mm): Frame width b (mm): Young’s modulus E (kg/mm²): Allowable deflection d (mm):

Click Calculate to see results

* Recommended: Keep max deflection < 0.1 mm to prevent flash

2. Square Cavity Bottom (Integrated Frame Structure)

Pressure p (kg/cm²): Pressure bearing height a (mm): Young’s modulus E (kg/mm²): Allowable deflection d (mm): Coefficient C:

C value table (based on l/a ratio):
l/a=1.0: C=0.044 | l/a=1.2: C=0.062 | l/a=1.4: C=0.078
l/a=1.6: C=0.090 | l/a=1.8: C=0.102 | l/a=2.0: C=0.111
l/a=3.0: C=0.134 | l/a=4.0: C=0.140 | l/a=5.0: C=0.142

Click Calculate to see results

3. Circular Cavity (Frame Structure)

Inner radius r (cavity radius) (mm): Pressure p (kg/cm²): Young’s modulus E (kg/mm²): Poisson’s ratio m: Allowable deflection d (mm):

Click Calculate to see results

4. Support Plate

Forming pressure p (kg/cm²): Pressure bearing height a (mm): Pressure bearing length l (mm): Pressure bearing plate width b (mm): Young’s modulus E (kg/mm²): Allowable deflection d (mm):

Click Calculate to see results

* Support blocks should be as short as possible

injection mould wall thickness calculator

Injection Mold Strength Calculator

1. Square Cavity Bottom (No Frame Structure)

2. Square Cavity Bottom (Integrated Frame Structure)

3. Circular Cavity (Frame Structure)

4. Support Plate
