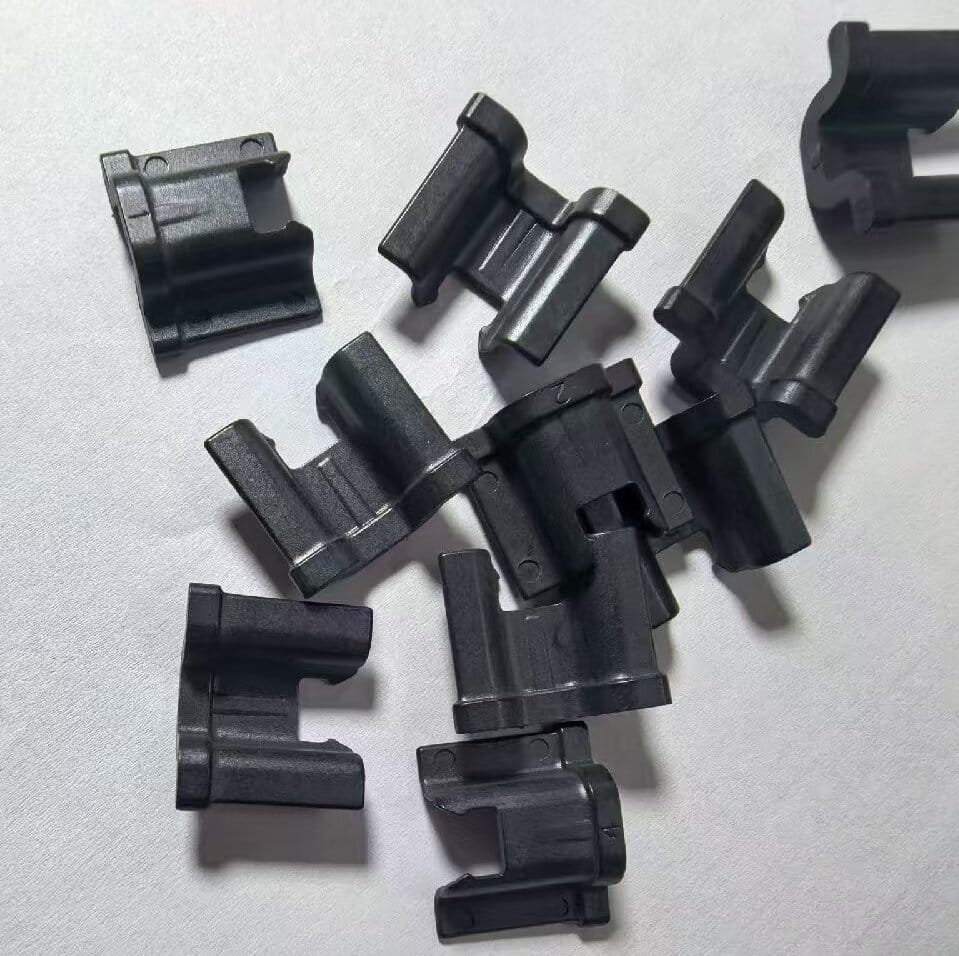

PPS Material and Process Specifications

PPS sits between standard engineering plastics and PEEK on price. On parts that do not need PEEK’s full temperature range, that price gap is usually the whole reason PPS gets specified. The choice still turns on chemical exposure, loading, service temperature and the grade. We review material selection free of charge with every PPS RFQ, because changing your mind after the steel is cut costs real money.

Treat these as starting points, not acceptance criteria. Before tooling starts, confirm the grade’s data sheet and agree how the critical properties will be measured. We write the agreed values into the DFM report and the T1 inspection plan. The mold then gets cut against a written target instead of a general expectation. Background on engineering thermoplastic compounds is published by the Society of Plastics Engineers.

PPS Grades for Injection Molding

The most common grade mistake is choosing by filler percentage instead of by job. A connector housing, a pump impeller and a sliding bushing do not want the same filler package. Tell your China injection molding supplier the operating conditions before you ask for a material price. Send us those conditions and we will quote two or three candidate grades side by side, with the tooling consequence of each.

GF40% glass-filled PPS

GF40% PPS is the default when the part has to be stiff. The reference values are roughly 120 MPa tensile strength and 260°C heat deflection temperature. It goes into automotive connectors, housings and structural brackets. Fiber orientation makes the part shrink differently along and across flow, so gate position decides the final shape. On a glass-filled PPS part that is the first thing our tool designers model.

Glass fiber and mineral-filled PPS

Mineral filler pulls warpage down on some geometries. It does not cancel distortion on its own. Check flow path, wall thickness, mounting points and the flatness callout against the compound before you accept it as the fix.

Carbon-fiber-filled PPS

Carbon-fiber grades raise stiffness and make the part electrically conductive. How conductive depends on the compound and fiber loading. Specify the resistivity you need. A material name is not a specification.

PTFE-filled or lubricated PPS

Lubricated grades suit bushings, bearings and sliding parts. Check the wear pair, contact pressure, running speed and the chemical environment. A low friction figure on a data sheet does not prove the part will survive in service.

Impact-modified PPS

Impact-modified grades help where the part sees notches or sudden load. You give up some stiffness, heat resistance and chemical compatibility in exchange. Worth considering when the failure mode is cracking rather than creep.

LDS-compatible PPS

Laser-direct structuring grades support 3D-MID parts with structured antenna or circuit features. Confirm laser compatibility, plating and electrical specifications with the compound supplier before the part gets designed around them.

PPS Injection Molding Applications

PPS gets specified when a cheaper engineering plastic cannot hold heat, chemicals and dimensions at the same time. Approval still needs testing under real service conditions. Below are the applications buyers most often bring to a China molder, with what each one has to have defined at RFQ stage.

Automotive under-hood components

Fuel-system components, coolant housings, water-pump impellers, thermostat holders and electrical parts all appear in PPS. The design has to carry heat, fluid compatibility, vibration and mechanical load together. Tell us at RFQ stage whether PPAP documentation is expected. It changes the tooling schedule and the quotation, and finding out after kickoff helps nobody.

Electrical connectors and components

High-temperature connector housings, sockets, bobbins and switch components use PPS regularly. Specify dielectric requirements, operating temperature, dimensional tolerances and the flame rating that applies. Thin-wall connector bodies in glass-filled PPS are among the harder jobs in this material. They earn a flow analysis before steel is cut.

Pump and valve components

Pump housings, impellers and valve parts suit PPS on chemical and thermal grounds. Check the exact fluid, its concentration, the temperature and the exposure duration. A general chemical-resistance statement is not compatibility testing.

Aerospace and defence components

Brackets, sensor housings and insulation components are built in PPS where the program allows it. Approval depends on structural load, fire requirements, environmental exposure and the qualification rules you have to satisfy.

Electronics and semiconductor equipment

Relay housings, switch parts and equipment components use PPS grades. Low moisture absorption helps the part hold size. Electrical performance still has to be verified on the chosen compound rather than assumed from the family.

Medical and laboratory equipment

Some PPS grades handle repeated cleaning or elevated temperatures well. Do not assume every grade suits medical contact or repeated autoclave cycles. Confirm the chemical, sterilization and regulatory compatibility you need before the grade goes on the drawing.

Chemical processing equipment

Pipe fittings, filter housings and pump components can run in PPS. Resistance varies with the medium and the operating temperature. Validate the resin before you commit to production tooling.

3D-MID and LDS antenna components

LDS-compatible PPS supports molded interconnect devices in communication and sensor products. Material, laser processing, metallization and electrical validation have to be coordinated as one design, not handed off in sequence.

PPS Processing Requirements

PPS does not forgive a loose process the way ABS or PP will. The actual window follows the compound, the machine, the mold and the part. Ask a supplier how each setting gets established during trials. If they cannot answer that, the risk moves onto your launch schedule.

Mold temperature and crystallinity

Many PPS grades want mold temperatures around 130–150°C. The resin supplier’s data sheet sets the number. A mold running cold produces different crystallinity, different shrinkage and different thermal behavior from the part you approved.

Confirm the temperature at the mold, not on the controller display. During T1, record the conditions and inspect dimensions after the agreed conditioning procedure. We measure mold-face temperature on PPS trials and put the reading in the T1 report alongside the sample dimensions.

Tool steel and cavity protection

Steel selection follows the compound, the production volume, the corrosion exposure and the maintenance plan. S136 stainless, other hardened steels and surface treatments all have a place. Do not assume every PPS grade attacks standard P20 at the same rate.

Gas generation, venting and resin degradation also decide how a cavity ages. Settle the steel specification and the venting plan before the mold is cut. Our quotations state the steel grade and hardness for every cavity and core, so you can compare offers on something other than price. For tooling material background see our mold steel selection guide, and trade coverage at MoldMaking Technology.

Resin drying and material handling

Use the drying temperature and time for the actual grade. Record the material lot, the drying conditions and the handling time. Wet or degraded resin shows up as splay, bubbles and lost mechanical performance.

Ask for batch records rather than a statement that the factory has a drying procedure. The record has to connect a material lot to a production run. We issue those records with each PPS shipment as standard.

Post-mold annealing

Critical PPS components sometimes need annealing to relieve residual stress or reach the required dimensional behavior. The process reference is 200–220°C for 1–4 hours. Confirm the schedule with the material supplier and validate parts before you write it into production.

Annealing costs time and handling. We price it as a separate line so you can see what the requirement costs per part, then decide whether the specification really needs it. Processing coverage at Plastics Technology is a useful second opinion here.

Flash and parting-line control

PPS melt viscosity can be low. Too much injection pressure, a worn shut-off or a poor mold fit will give you flash. Adding clamp force without finding the cause hides the problem rather than fixing it. Flash on a PPS T1 is usually a fitting problem, not a press problem.

At T1, inspect the parting line, the inserts, the slides and the shut-offs. Confirm the process window is stable before you approve the sample.

Glass-fiber orientation and warpage

Glass-filled PPS shrinks differently along and across flow. Gate location, rib layout, wall thickness and cooling all shift the finished shape. Where flatness or mounting dimensions are critical, consider Moldflow analysis before steel cutting.

Simulation compares design options. It does not replace trial parts and a dimensional report. The mold may still need adjustment after T1, so our tooling quotations include the modifications required to reach the agreed dimensional criteria. A second correction round should not arrive as a surprise invoice.

Topworks PPS Molding Capability

PPS exposes the gap between a general-purpose molder and a shop set up for high-temperature engineering plastics. A factory running mostly ABS and PP will not have oil-based temperature controllers, corrosion-resistant tooling stock on the shelf, or operators who know what a cold cavity does to crystallinity. Here is what we bring to a PPS program.

If a line in that table matters to your program, ask us to evidence it before you place the order. We would rather answer the question at quotation stage than at T1.

PPS Molding Defects and Quality Control

Most PPS problems surface at T1 or after dimensional conditioning. Agree the acceptance criteria before the first trial. Skip that and both sides end up judging the same sample against different expectations, and the cost of the argument lands on your launch date.

For every critical defect, name the inspection method and the person who signs off. A visual sample tells you nothing about internal integrity, long-term heat resistance or dimensional stability. Our T1 package carries the dimensional report, the process conditions we ran and photographs of the sample. You can make an approval decision without flying to the factory.

For related troubleshooting, see our guide to injection molding defects.

PPS Part Design Guidelines

Part design drives mold cost, cycle stability and the risk of cracking or warpage. A geometry change at DFM stage is cheap. The same change in a finished cavity is not. Every Topworks PPS quotation carries a DFM review at no charge, whether or not you place the order.

Wall thickness and transitions

The design reference is 0.8–4 mm wall thickness. Real limits follow the grade, the flow length, the reinforcement and what the part has to do. Avoid abrupt thickness changes that create local stress or uneven cooling.

Look hard at the junctions around bosses and ribs. They sink, void or shrink locally even when the nominal wall looks fine. Use a gradual transition wherever the design allows one.

Draft angles

The guideline lists a minimum of 0.25° per side up to 5 mm depth and 2° per side at 50 mm draw. Treat those as starting points. Surface texture, draw depth, reinforcement and ejection direction all push the requirement around.

Check undercuts before you fix the parting line. Slides and lifters solve geometry problems, but each one adds tooling cost and a maintenance point. Our DFM report flags which undercuts are worth designing out and what each one adds to the tool price. See our guide to undercuts and draft angles.

Corner radii

The reference specifies an inside radius of at least 25% of wall thickness, preferably 60%. Sharp internal corners concentrate stress, and in a glass-filled grade that is where cracks start. The usable radius also depends on packaging space, structural load and mating features.

Ribs and bosses

The guidelines put rib thickness at 50–60% of nominal wall and boss walls at 50%. Core out solid bosses where the design permits. Check the selected grade and the required screw or insert retention force before you lock those ratios in.

Gate placement and runners

Gate position sets packing, weld-line location and fiber orientation. On glass-filled PPS, a gate that fills the part cleanly can still throw the mounting points out of flat. That is the trade-off worth arguing about at DFM.

Review runner layout, gate dimensions, venting and cold-slug wells during DFM. A hot runner cuts runner scrap, which matters at PPS resin prices, but you pay for it in tool cost and maintenance. We quote both options where the volume makes the comparison worth running.

Dimensional tolerances

The commercial reference is ±0.08 mm on a 25 mm dimension, with ±0.04 mm described as achievable on fine tolerances. Those are not blanket PPS capabilities. Results follow geometry, resin grade, fiber orientation, mold construction, measurement method and process stability.

Mark critical dimensions on the 2D drawing. State the datum system, the measurement method and any conditioning requirement. Agree the inspection report format before T1. At quotation stage we will tell you which of your tolerances we consider realistic on the selected grade, and which ones we want to discuss first.

PPS vs PEEK vs PA66

PPS earns its place when PA66 cannot take the heat or the chemistry, and PEEK costs more than the application justifies. Material choice is also the biggest single lever on piece price in this family. Moving a part off PEEK onto a suitable PPS grade can change the economics of a whole program.

These are comparison references, not guaranteed properties for every commercial grade. Pull the exact data sheets before you use any of it for design approval.

PPS Tooling and Piece-Price Drivers

Buyers comparing China quotations for PPS parts usually see a wide spread, and it is rarely about margin. It reflects what each supplier included and what each one left out. Knowing the drivers makes the quotations comparable.

What moves the tooling price

• Corrosion-resistant cavity steel for an aggressive PPS compound costs more than a general-purpose grade, and lasts longer in it. A quotation that does not name the steel cannot be compared with one that does.
• Single-cavity tooling is cheaper to build and slower per part. We model the crossover against your annual volume instead of defaulting to one or the other.
• Every slide, lifter and insert adds build cost and a maintenance point. The DFM report shows which ones a small geometry change would remove.
• A hot runner raises tool cost and cuts material waste, which is significant at PPS resin prices.
• Polishing and texture specifications affect build time, and texture also changes the draft the part needs.

What moves the piece price

• Resin grade and filler, the largest single component on most PPS parts.
• Cycle time, which follows wall thickness, cooling layout and the mold temperature the grade demands.
• Secondary operations such as annealing, insert installation, assembly and the inspection level you specify.
• Documentation. Full CMM reporting on every lot costs more than sampling, so ask for what you actually use.
• Order quantity and release pattern. Blanket orders with scheduled releases price better than repeated small spot buys.

Our quotations break out tooling, piece price and secondary operations as separate lines. You can see what drives the number and where cost can be engineered out. For a first-pass figure before drawings are finished, try our injection mold cost calculator, or read the full injection molding cost guide.

Choosing a China PPS Injection Molding Supplier

A low quotation proves nothing about whether a supplier can mold PPS consistently. Ask for evidence of the process, the tooling setup and the inspection method. These checks matter most when you are sourcing without visiting the factory. Run them on us as well. This section is written the way we would want to be audited.

Confirm high-temperature mold control

Ask what temperature-control equipment the supplier uses and how mold temperature gets measured during trials. A controller setpoint is not a verified mold temperature. Request the T1 process record for your resin grade, not a generic one.

Review tooling materials and maintenance

Ask the supplier to name the proposed mold steel, the hardness or surface treatment, and the maintenance plan. The choice has to match the compound’s chemical behavior and the production conditions you expect.

Request material drying records

The supplier should trace resin lots and document drying conditions. Where the project has strict moisture limits, agree the measurement method and the acceptance limit before production starts.

Ask how glass-filled warpage is assessed

On a flat housing or any part with several mounting points, ask how the supplier evaluates fiber orientation and shrinkage. Moldflow helps. Dimensional inspection on real samples is still the thing that settles it.

Confirm inspection and sample approval

Supply a drawing with critical dimensions and GD&T. Agree the sampling quantity, the measurement method and the approval criteria. A supplier’s standard inspection report often misses the features that control your assembly.

Check communication and export arrangements

Before you place the order, settle who owns the mold, who approves design changes and who pays for corrective tooling. Confirm packaging, shipping terms, export documentation and delivery responsibility in the purchase agreement. At Topworks the customer owns the tooling they paid for, and we release it on request.

For broader supplier evaluation, review our China injection molding supplier guide.

How a Topworks PPS Project Runs

Most PPS enquiries follow the same path from drawing to production. Knowing the steps makes the schedule easier to plan against.

1. RFQ and DFM review. You send 3D and 2D files plus the operating conditions. We return a DFM report and a quotation covering tooling, piece price and secondary operations.
2. Material and tooling agreement. We confirm the PPS grade, the steel specification, the cavitation and the dimensional criteria the mold will be judged against.
3. Mold design approval. You review and sign off the layout, gate positions, parting line and ejection before any steel is cut.
4. Mold manufacturing, built in-house with progress updates at agreed milestones.
5. T1 sampling. Samples molded under recorded conditions, inspected after the agreed conditioning, shipped to you with the full report.
6. Correction and approval. Mold adjustments until the agreed criteria are met, then your written sample approval.
7. Production and delivery, on scheduled releases with lot traceability, inspection reports and export documentation.

PPS Injection Molding RFQ Checklist

A good RFQ lets the supplier price the mold and the process without guessing. Missing grade details or unmarked tolerances produce a quotation that looks cheap because it excludes the engineering work. Work through this list and your numbers come back faster and firmer.

1. 3D and 2D drawings. Send STEP or IGES files with a PDF drawing. Mark critical dimensions, datums, GD&T and assembly interfaces.
2. PPS grade. Name the manufacturer and grade where you know it. Include glass-fiber content, mineral filler, carbon fiber, lubricant or impact modification.
3. Operating temperature. State continuous and peak temperatures, the exposure duration and any thermal cycling.
4. Chemical exposure. List the fuels, solvents, acids, bases or other fluids that touch the component.
5. Tolerances and assembly. Identify press fits, inserts, screw joints, snap fits and the dimensions that control assembly.
6. Volume and timing. Give the prototype quantity, the expected annual demand and your target sample approval date.
7. Annealing. State whether post-mold heat treatment is specified or still needs evaluation.
8. Certification. Identify any quality-system, material, flame-rating or industry documentation at RFQ stage, not after kickoff.

Do not have all of it? Send what you have. We will come back with the specific gaps instead of sitting on the quotation.

Is PPS Right for Your Project?

Projects that may benefit from PPS

• Automotive components exposed to elevated temperatures, fluids or vibration.
• Electrical parts that need high-temperature performance and a specified flame rating.
• Industrial components where chemical compatibility narrows the material list.
• Precision parts where low moisture absorption helps control dimensional change.
• Metal or thermoset replacement projects with validated mechanical and thermal requirements.

When another material may be better

• ABS, PC or nylon already meets the operating requirements at a lower total cost.
• The project has no defined temperature, chemical exposure or dimensional requirement.
• The application needs impact performance the selected PPS grade cannot deliver.
• The project is a one-off prototype and production tooling cannot be justified.

PPS costs more to buy and more to run than standard thermoplastics. Confirm you need the performance before you commit the tooling budget. If your part belongs in the second list, tell us anyway. We mold the full range of engineering thermoplastics and will quote the material that actually fits.
