The Challenges of Manufacturing Intricate and Miniature Components

The Challenges of Manufacturing Intricate and Miniature Components

Producing exceptionally small, delicate parts with intricate details poses steep manufacturing challenges. At the microscale, factors like material flow, part ejection, and dimensional precision demand specialized expertise and equipment.

As products from medical devices to electronics shrink in size, the need for micro-scale parts has surged. But complexity rises exponentially as part weights drop into the milligram range. Successfully molding micro components requires in-depth understanding of micromolding techniques.


Parts weighing less than 50 milligrams and as minute as 0.001 grams can now be micromolded. But with ultra-small shot sizes, factors that are easy to control in conventional injection molding become major challenges. Melting and metering tiny resin pellets requires different extruder designs to avoid starvation. The resin must flow easily into micro features like channels, holes, and threads barely wider than a human hair. High injection pressures up to 2500 bars may be needed to fill micro molds. Parts can be dwarfed by even microscopic specks of dust or contaminants. New specialized approaches are essential for micromolding excellence.

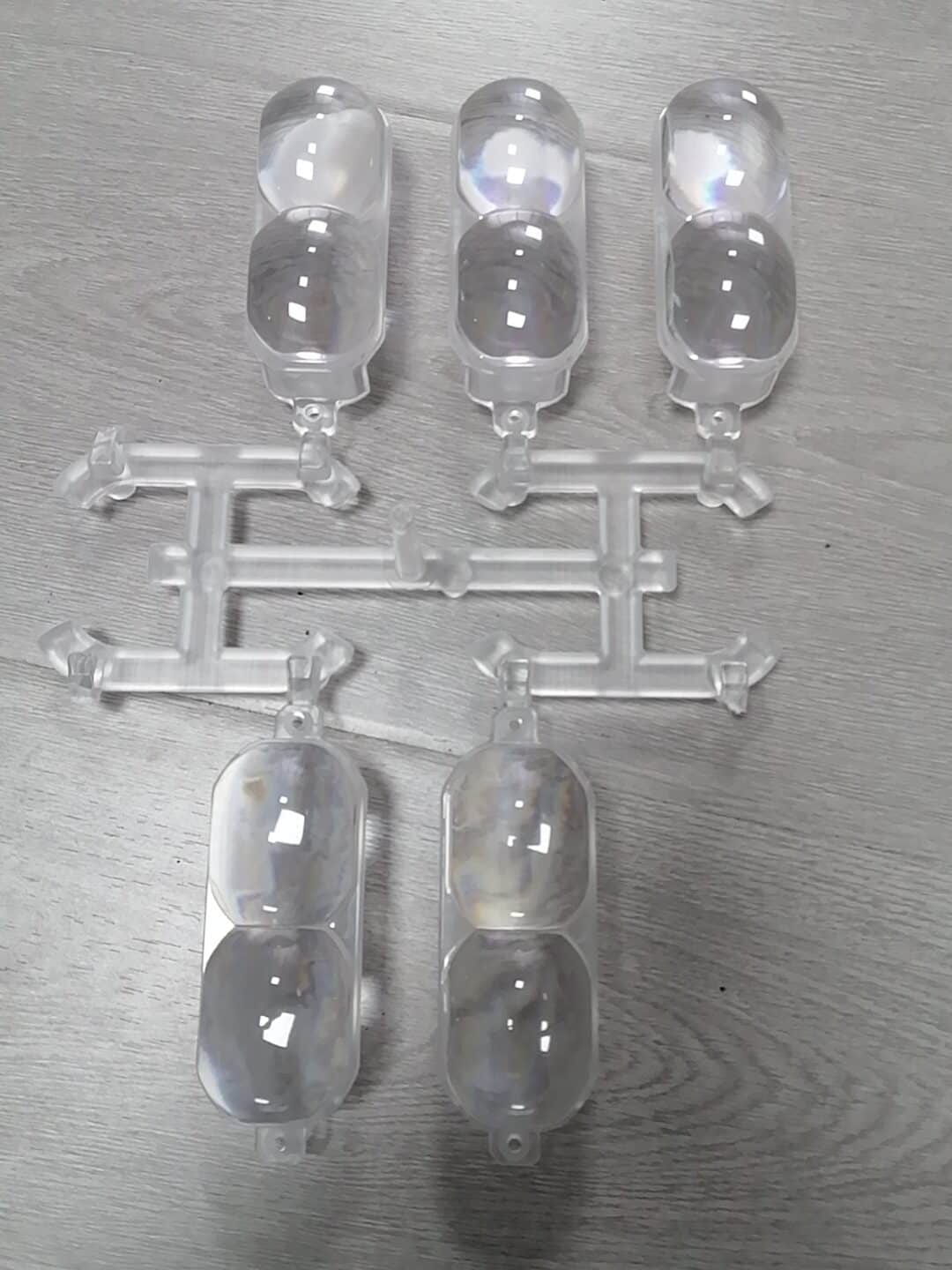

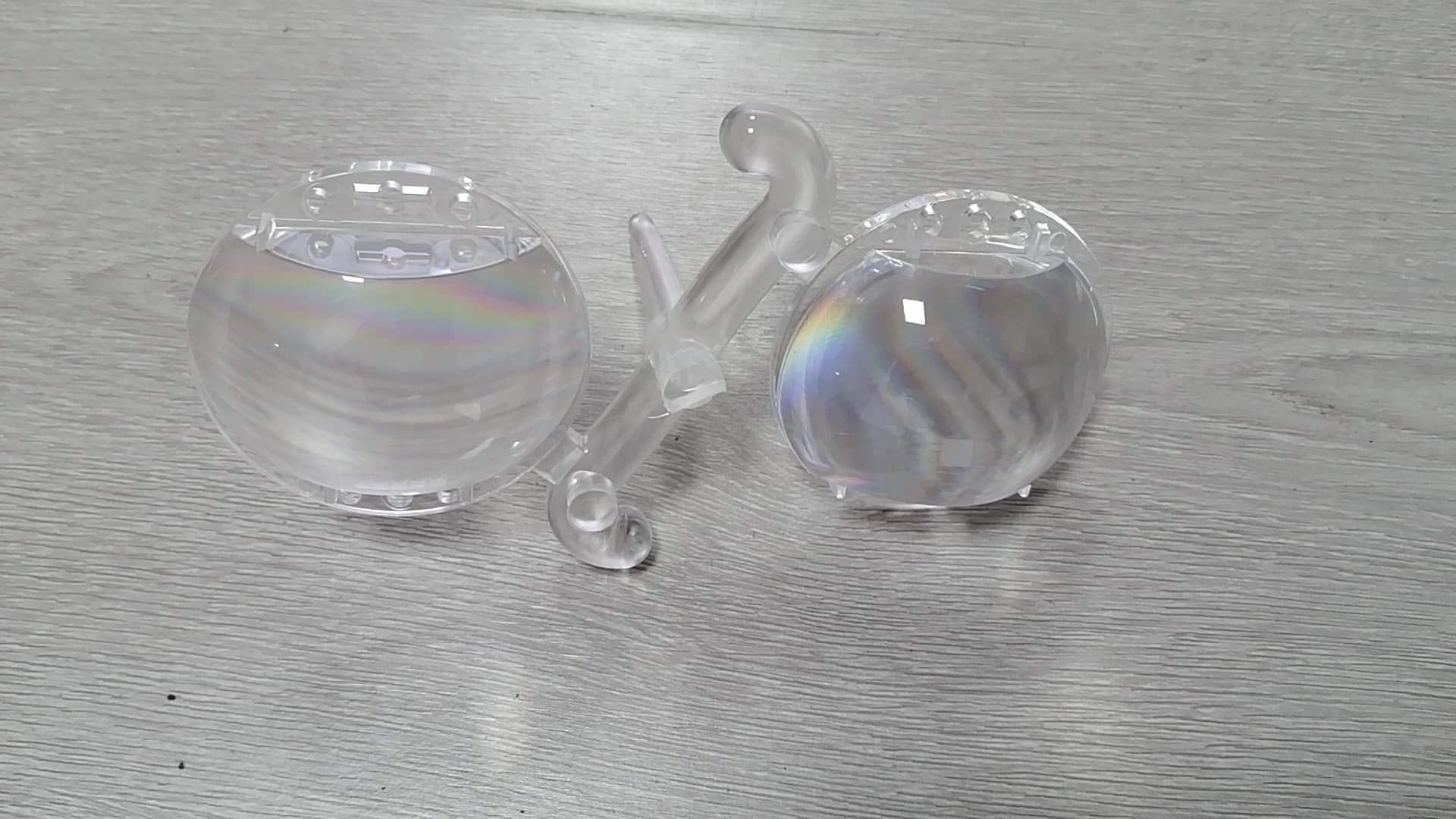

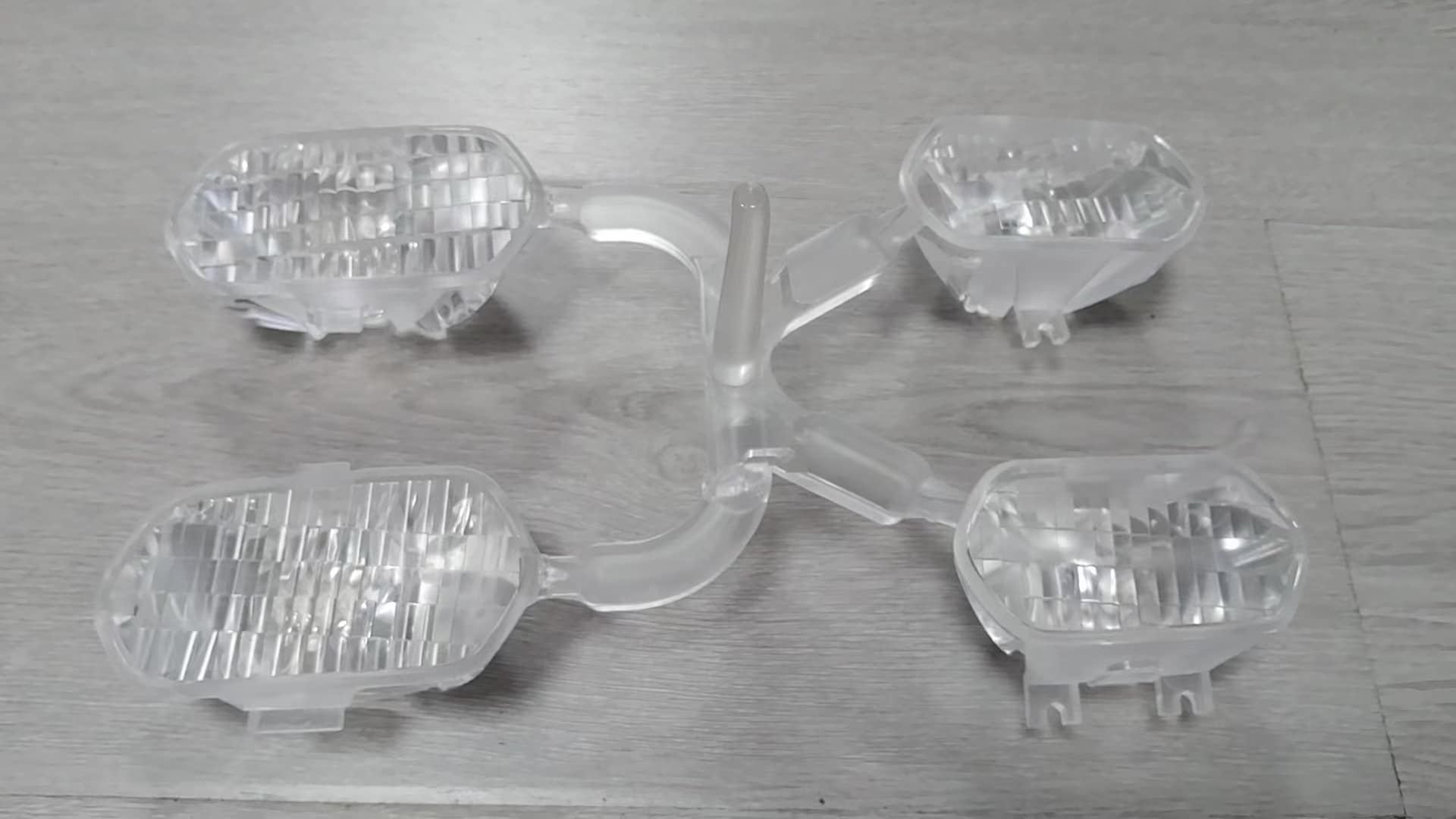

The Benefits and Opportunities of Precision and Micro Injection Molding

Micro injection molding provides solutions where miniaturization is critical. Benefits include:

  • Parts weighing from 1 gram down to less than 1 milligram
  • Intricate micro-scale features like shafts, holes, threads
  • Extremely tight tolerances of ±0.005 inch or less
  • High production volumes measured in millions of parts
  • Automated manufacturing reducing costs
  • Consolidating many small components into one integrated part

By enabling complex miniaturized designs, micro injection molding creates opportunities for innovation across industries. Medical and pharmaceutical products can incorporate microfluidics for labs-on-a-chip that analyze nanoliter sample sizes. Electronics become progressively tinier using micro-molded connectors and packaging. Micromolded gears, cams, springs, and actuators allow shrinking the size of precision instruments. These capabilities offer competitive advantages to companies leveraging the precision of micro-scale plastics manufacturing.

Industries Demanding Precision and Micro Injection Molding

Applications driving demand for precision micromolding include:

  • Medical devices – Microfluidics, lab-on-a-chip, microneedles
  • Electronics – Microconnectors, encapsulation, microleaf springs

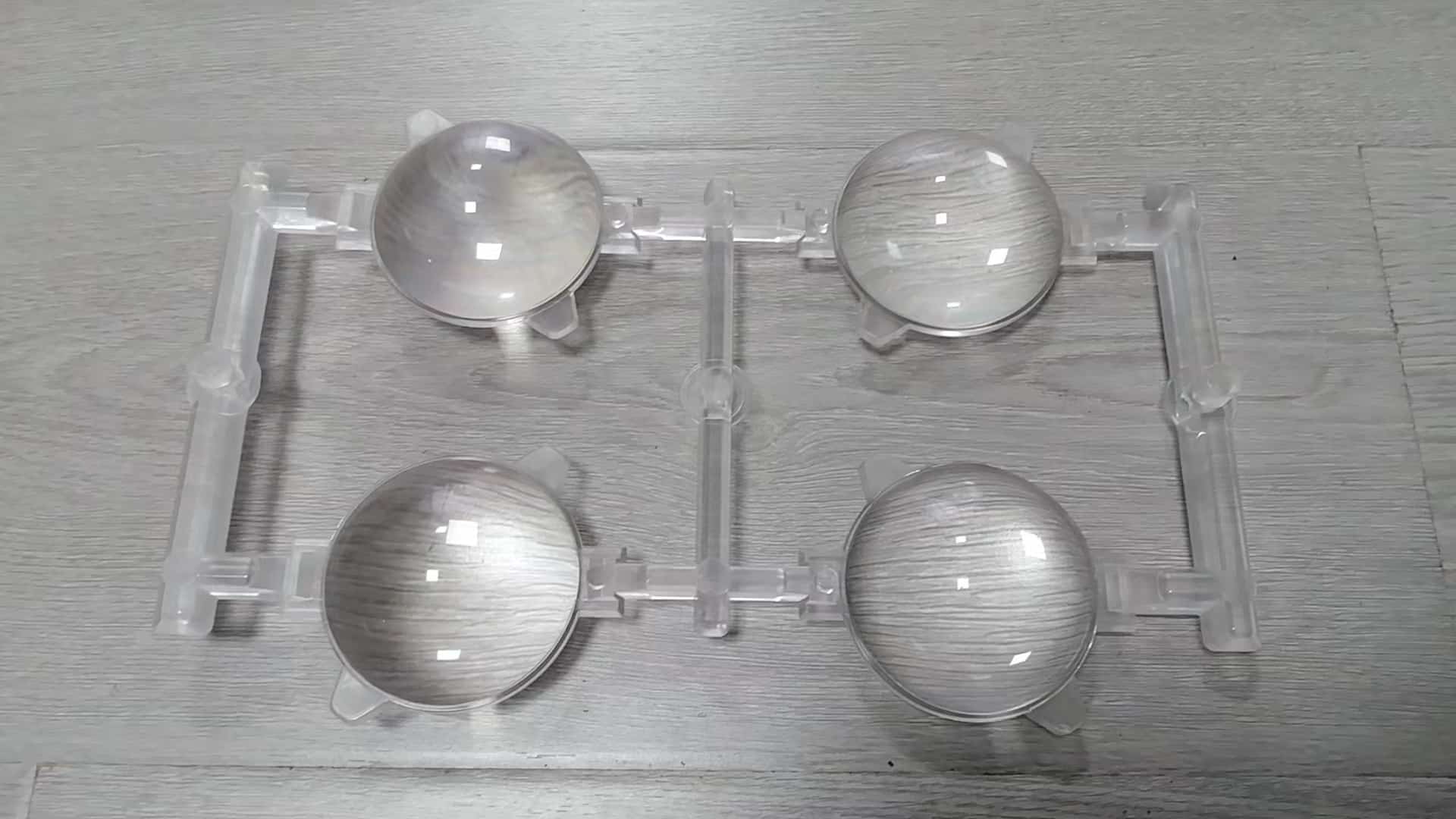

  • Telecommunications – Fiber optic connectors, microlenses
  • Automotive – Pressure sensors, microgears for motors
  • Aerospace – Miniaturized avionics and control systems

As technology progresses, more sectors adopt micro injection molding to reap benefits. The automotive industry uses precision-molded micro parts to reduce weight and packaging size. Aerospace engineers specify micromolded components to achieve weight reductions in aircraft and satellites. In electronics, molding micro-scale plastic enclosures, insulators and connectors enables further miniaturization of products. Across manufacturing, the quest for ever-smaller components drives advances in micromolding techniques.

Case Studies of Successful Applications in Precision and Micro Injection Molding

Micromolded medical labs-on-a-chip: For microfluidic biochip devices, laser machined micromolding tools as small as 0.001 inches produced highly complex PP, COC, and LCP devices with microchannels, ports, reservoirs, and sealing surfaces. The microchips perform diagnostics on tiny samples for healthcare applications.

Micro gears for surgical robots: Precision steel micromolding tools molded tiny POM plastic gears just 0.039 inches thick for transmitting torque in compact surgical robot joints. The micro-molded gears met stringent requirements for performance and biocompatibility.

Drug delivery system: A combination reservoir cap and needle for a single-use drug delivery pen required 0.0020 inch tolerances. Micromolding provided the needed precision to produce a functional, highly reliable medical device component.

Glucose monitor: An infrared thermoplastic filter for a blood glucose monitor used micro injection molding with tolerances of ±0.0005 inches due to the critical optical transmission characteristics. Tight process controls and precision tooling achieved the exact performance required.

Micro ball bearings: High performance POM micro ball bearings just 0.012 inches in diameter were micromolded in millions for use in precision gyroscope assemblies. The micro bearings passed stringent testing for friction and contamination.

Microfluidic research devices: COC microfluidic devices with highly complex microchannel architectures enable university research programs. Micromolding rapidly produces prototypes and pilot production quantities.

Tips for Achieving Excellence in Precision and Micro Injection Molding

Here are best practices for micromolding excellence:

  • Invest in high precision micromolds fabricated with advanced machining or etching capable of micro features
  • Use clean room standards to prevent contamination from dust or other particles that can clog micro features
  • Choose thermoplastic resins with optimized viscosity and flow properties at micro volumes
  • Utilize high tonnage presses designed for micromolding with precise plasticization
  • Precisely control melting temperatures, injection speeds, and cooling to maintain micro dimensions
  • Automate handling and assembly in enclosed workcells to avoid manual contact with micro parts
  • Validate processes with real-time production monitoring and quality control testing
  • Work with experienced micromolders with proven quality systems and metrology expertise

Equipment Needed for Micro Molding

Micromolding requires an ecosystem of specialized equipment:

  • Plastic injection molding machines from 10 to 100 tons with precision plasticization
  • High precision micro mold tooling made from hardened steel with finishing under 0.0002 inches
  • Automated assembly stations with microscopes for handling miniature parts
  • Vision systems to inspect for micro defects and measure micro features
  • Clean room style enclosures to create positive air pressure and prevent contamination
  • Metrology lab for measuring molded part weight, dimensions, flash, cosmetic defects

Design Principles for Micromolded Parts

Engineers designing parts for micro molding should follow design-for-manufacturing principles:

  • Use generous draft angles over 7 degrees on walls and avoid undercuts
  • Include flow channels in parts to aid resin penetration into tiny sections
  • Optimize wall thicknesses for uniform cooling and dimensional stability
  • Specify generous radii on corners and edges to avoid breaking delicate sections
  • Utilize texturing or raster patterns to aid demolding of tiny intricate features
  • Minimize actions requiring force, like demolding or mating and fastening of micro parts

Conclusion and Future Trends in Micro Injection Molding

As industries demand ever smaller components, micro injection molding provides solutions. With specialized equipment and expertise, it can reliably manufacture millions of microparts with tight tolerances. Trends point to increased adoption across medical, electronics, automotive and other sectors as micromolding technology and knowledge advances. Ongoing innovation in micromolding techniques, equipment, materials, and applications will bring further miniaturization benefits across manufacturing.
