16 process tips for injection molding



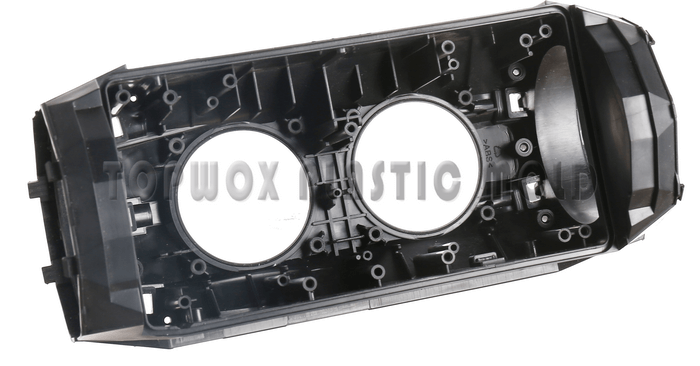

injection molding


 All the effective technique of controlling the quality and the expense of an item is based greatly on the uniformity with the method employed to produce that item.

Uniformity are only able to be accomplished by securely managing as numerous variables as possible over the production procedure.

  • Injection molding atmosphere

The atmosphere around a molding facilities comes with an instant influence on the molding procedure.

Such as, the procedure parameter configurations for producing items with hot and dry environment may be various for that identical work operating in a wet cold day.

You can foresee needs to change the procedure to satisfy the external situations. A few really lucky molders operate in controlled temperatures with air conditioner and moisture controls to keep constant procedure conditions seven days a week.

  • Injection molding mold release

Make use of a mold release limited to the initial few injections made from completely new mold, or at the beginning of a new manufacturing operation after the mold was positioned in storage area.

Mold releases will stop plastic molecules from binding together and make up a molded component that’ll be vulnerable to breaking .

If the component is likely to adhere, come up with a determination that explains why it is adhering, and fix why it’s happening.

Undercuts, harsh cavity area, insufficient draft angles, mixed plastic resin, and improper process issues will be the most typical reasons for plastic stay inside molds.

injection molding

  • Perspective examinations

All the perspective examinations must only come in with a shaped component after it has cooled down to environment temp roughly three hours later.

Whilst molded thermoplastic items seem to be sound instantly, they’ll go on to cool and reduce in size for about four weeks after getting ejected out of the mold.

The majority of (90%) of the complete shrinking will take place in the period the plastic is cooling down within the mold.

The rest of the 10% will happen during the upcoming four weeks, but a majority of of that will occur in the first couple of hrs once being expelled out of the mold.

  • Holding pressure

Holding pressure configurations can typically be arranged at 1 / 2 the early primary shot pressure, as a general rule. Alterations should come in to that guideline with different variety of circumstances ,however 1/2 is an effective starting place.

  • Hold time

Hold Time can be used to hold pressure resistant to the plastic material as it cools down enough to begin to harden within the mold.

When the substance in the gate has become cold,the hold time may be ceased, but not for now.

Should the hold pressure is withdrawn too quickly, the still-molten resin in the mold impression would really be drawn returning from the gate, therefore leading to irregular component mass.

  • Bubbles

Spherical bubbles inside a clear component indicates you will find excessive humidity within the component.

Oval or spear like bubbles indicate you will find too much shrinking in that region of the component.

injection molding

  • 3 primary correction guidelines to injection molding

You will find 3 main guidelines to adhere to when producing alterations in injection molding variables:

one modification at one time;

A machine should be able to become stable for ten to twenty rounds after any kind of solitary modification is enabled to the approach:

In case a alter does not resolve the problem ,put it back once more and hold out 10-20 extra rounds prior to making another alter.

Short injection molding cycle time

The entire molding routine period is greatly affected by the opening and closing ranges of the molding press. Each mold needs to be customized to open and shut as much as necessary to have the accomplished components out of the mold.

Cycle times can be very expensive.

And for every minute you may reduce off the total cycle, it can save around $10,000 each year when the mold were to operate constantly in that time.

Appropriate mold temperatures in injection molding

Appropriate mold temps will be important to excellent molding. Numerous molders assume that a cold mold indicates quicker cycles and greater revenue when compared to a hotter mold.

Actually, particularly when producing crystalline items, the plastic may call for a gradual cool-down to achieve optimum bodily and aesthetic attributes in the molded component. You will find rare circumstances where cold molds needs to be used.

It’s always best to observe the resin provider’s suggestions for mold temp configurations for any particular plastic.

  • Water circulation in injection molding

Water circulation inside a mold is referred to as working in one of 2 ways:

laminar, or turbulent.

Laminar indicates the water runs in “stacked layers style” while it flows in the lines and just the surface layers really take heat out of the mold steel.

Turbulent indicates the water is actually getting tumbled and merged while it flows in the lines, leading to all the water in contact with the mold steel.

Turbulent circulation is preferred since it is 5-6 times better and cheaper compared to the laminar way.

To find out if you’ve got turbulent circulation inside the water lines ,you may touch the exit and entry pipes eminating from the mold itself.

The exit pipe must be around 8 degrees (F) warmer as opposed to entry pipe.

While that sounds wrong, keep in mind that we are attempting to keep a mold temp at a certain value.

The perfect outcome is the exit water and the entry water could be very same. That would indicate we have a perfect mold cooling .

In real life, however, don’t be surprised to a 9 degree (F) variation in the pipes to suggest appropriate turbulence.

Establishing turbulence inside a mold waterline is possible with a conventional principle and equation known as the Reynold’ Number.

This specifies real mold waterline specification, water circulation speed, hot and cold levels, and water viscosity attitudes.

However, crafting turbulence will also be achieved simply by ensuring there are flow obstacles in the waterlines.

One particular flow clog is applying a right-angled plug installing the place that the hose connects to the mold and some other on the outgoing side.

It’s also possible to put in a baffle tool (offered by mold providers like DME) inside the pipe that disperses the fluids via the number of baffle plates.

  • Troubleshooting

Excessively a tech, professional, or worker will be given a molding deficiency and will start switching knobs, turning buttons, and altering electronic timers with no being aware of what they’re doing or understanding what leads to anticipate.

Frequently, because of timetable specifications, a fast repair is preferred, and the specialist is thrown into a administration-instructed stress mode.

It makes sense that endeavors to fix flaws just often make things worse and the whole producing operation rapidly is out of control.

Although this is a typical circumstance in the majority of molding businesses (although not really released neither acknowledged), it does end up being like that.

The case ought to be in a way that the personal for solving a problem (no matter what position) may rationally evaluate a molding deficiency and figure out a most likely remedy prior to making any modifications.

The remedy must be experimented with before, and then some other selection.

Each option must be decided alone and rationally.

There shouldn’t be any uncertainty, and, at the appropriate time, support coming from outside solutions ought to be solicited and viewed.

You will find more than 250  variables that needs to be set up and manipulated to accomplish appropriate injection molding part.

These variables show up in 4 main aspects: pressure, temp, time.

Observe that the groups interlace. That implies that altering a parameter in any one region can also impact variables in other sections.

  • injection pressure

In adult life, pressure leads to anxiety.

On the injection molding operation, injection pressure can establish built-in tension to the molded item. The greater the pressure, the larger the stress.

That stress is going to be discharged eventually.

There is no query about its being discharged, just about the moment it might be discharged.

The higher the stress, the greater the influence on the molded component after it is discharged. Normally the stress relieves by means of breaking or shattering, however sometimes it may well reveal as deformation or color change.

  • Built-in stress in injection molding

In order to reduce built-in stress within a molded component(which subsequently discharges by means of breaking, discoloration, or bending), we must try to work the melted resin at the very least heat , the smallest achievable pressure, and in the minimum time-frame.

The target is to try to make the plastic go into the mold impression in the shortest time with the minimum level of stress accumulated.

  • Elevated time

Expanded time increases expense. Making use of a material supplier’s details list will make certain all these variables are attained.
