EMI/RFI Shielding & ESD Plastics: Conductive Injection Molding
Plastic is transparent to electromagnetic radiation. To shield electronics or dissipate static in a molded part, the resin has to be made conductive — with the right filler and the right design.
This guide explains conductive plastics for EMI/RFI shielding and ESD control, the fillers that make them work, and the design detail most teams miss. It expands the robotics & AI hardware overview.
Conductive plastics in brief:
- The problem: ordinary plastic does not block EMI and does not drain static charge.
- The fix: compound conductive fillers — carbon, carbon fiber, or metal — into the resin.
- ESD vs EMI: static dissipation needs modest conductivity; EMI shielding needs much more.
- The catch: molding buries fibers under a thin resin skin, so joint design decides real performance.
ESD vs EMI — two different jobs
People blur these, but they are distinct. Get the target right before choosing a material.
- ESD (electrostatic discharge). Drains static charge to protect sensitive parts. Needs only modest conductivity.
- EMI/RFI shielding. Blocks electromagnetic interference from escaping or entering. Needs far higher conductivity.
Carbon-filled ESD grades handle the first. Shielding needs more aggressive filler technology, because its bar is much higher.
The filler decides performance
Conductive plastic is a base resin plus a conductive filler. The filler choice sets shielding level, mechanical properties, and cost.
| Filler | Role | Notes |
|---|---|---|
| Carbon black | ESD, static dissipation | Low cost; modest conductivity |
| Carbon fiber | ESD to moderate shielding | Adds stiffness; cheaper than nanotubes |
| Long carbon fiber (nylon) | Higher EMI shielding | Up to ~70 dB, retains mechanical properties |
| Nickel-plated carbon fiber | High EMI shielding | Far higher than carbon black; up to ~85 dB with Ni-graphite |
| Stainless steel fiber | Effective shielding at low loading | Works at only a few percent fiber content |
The design trap most teams miss
Choosing a conductive resin is only half the job. The molding process and joint design decide whether the part actually shields.
The fix is to bridge the conductive bulk across the joint. Proven methods:
- Insert-molded pins or metal inserts that reach the conductive core.
- Self-tapping screws that bite through the skin into the bulk.
- Sonic or vibration-welded seams that fuse conductive material across the joint.
This matters most below roughly 150–200 MHz, where good cross-joint contact is essential. See how insert molding places conductive pins →
The moldability limit
There is a ceiling on how much filler you can add. Conductive particles raise the melt viscosity of the resin. Push the loading too high and the material will not fill the mold.
So shielding level, mechanical properties, and moldability trade against each other. The right compound balances all three for your part geometry — not just the highest dB number on a datasheet.
Need a shielded or ESD-safe molded part?
Tell us the target — ESD dissipation or an EMI shielding level in dB — plus the frequency and geometry. We will advise the compound and design the joints to actually hit it.
Upload your part detailsRelated guides

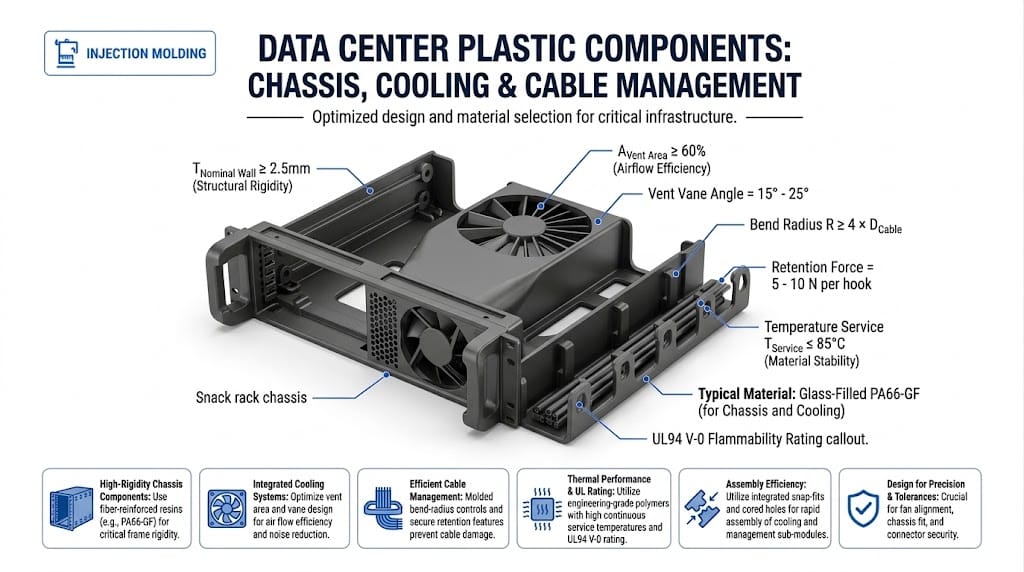

Data center plastic parts →
High-precision connector molding →
Insert molding for robotics & hardware →
Frequently asked questions
What is the difference between ESD and EMI plastics?
ESD plastics dissipate static charge and need only modest conductivity. EMI shielding plastics block electromagnetic interference and need much higher conductivity, so they use more aggressive fillers.
What fillers make plastic conductive?
Carbon black for ESD, carbon fiber for moderate needs, long carbon fiber for higher shielding, nickel-plated carbon fiber for high shielding, and stainless steel fiber, which works at only a few percent loading.
Why doesn’t my conductive plastic part shield well?
Molding leaves a thin, non-conductive resin skin (around 20 microns) over the fibers. That raises surface resistivity and breaks contact between mating parts. Bridge it with metal inserts, self-tapping screws, or welded seams.
Is conductive plastic better than a metal enclosure?
For many parts, yes. Conductive plastic is lighter, cheaper, and allows complex geometry. Its shielding is usually lower than solid metal, so match it to the actual frequency and dB target.
Can you just add more filler for more shielding?
Only up to a point. More conductive filler raises melt viscosity, and too much stops the material filling the mold. Shielding, mechanical properties, and moldability have to be balanced.
Bottom line. Shielding and ESD control can be molded into a plastic part, but not by material choice alone. Pick the filler for the job — carbon for static, metal-coated fiber for real EMI — then design the joints to bridge the resin skin. And respect the moldability limit. Tell us your dB target, frequency, and geometry, and we will spec the compound and engineer the part to hit it.
