7 Proven Steps to Choose the Right Injection Molding Machine (And Avoid Costly Mistakes)

Learn how to choose injection molding machine the right way—clamping force, drive type, screw specs, and TCO all in one guide.

Introduction

Knowing how to choose injection molding machine correctly is one of the highest-leverage decisions in plastics manufacturing. Pick the wrong machine and you pay for it every single cycle—through excess energy use, scrap rates, slow cycle times, or molds that wear prematurely. Pick the right one and you gain a competitive advantage that compounds over years.

This guide walks you through every major selection variable: clamping force, drive technology, screw geometry, energy efficiency, controller capabilities, and total cost of ownership. Whether you are sourcing equipment for the first time or evaluating a machine upgrade, you will leave with a clear framework for making the right call.

Why Machine Selection Affects More Than Production

Machine choice ripples across the entire product lifecycle. A machine with insufficient injection pressure forces you to redesign wall thicknesses. A machine with poor repeatability inflates your quality control labor. An inefficient drive technology inflates your utility bill by thousands of dollars per year.

For marketers involved in product development or supplier qualification, understanding these variables helps you ask the right questions, evaluate vendor proposals accurately, and anticipate lead time risks before they become customer-facing problems. When buying injection molding from China, these technical specifications become the foundation of your quality agreement.

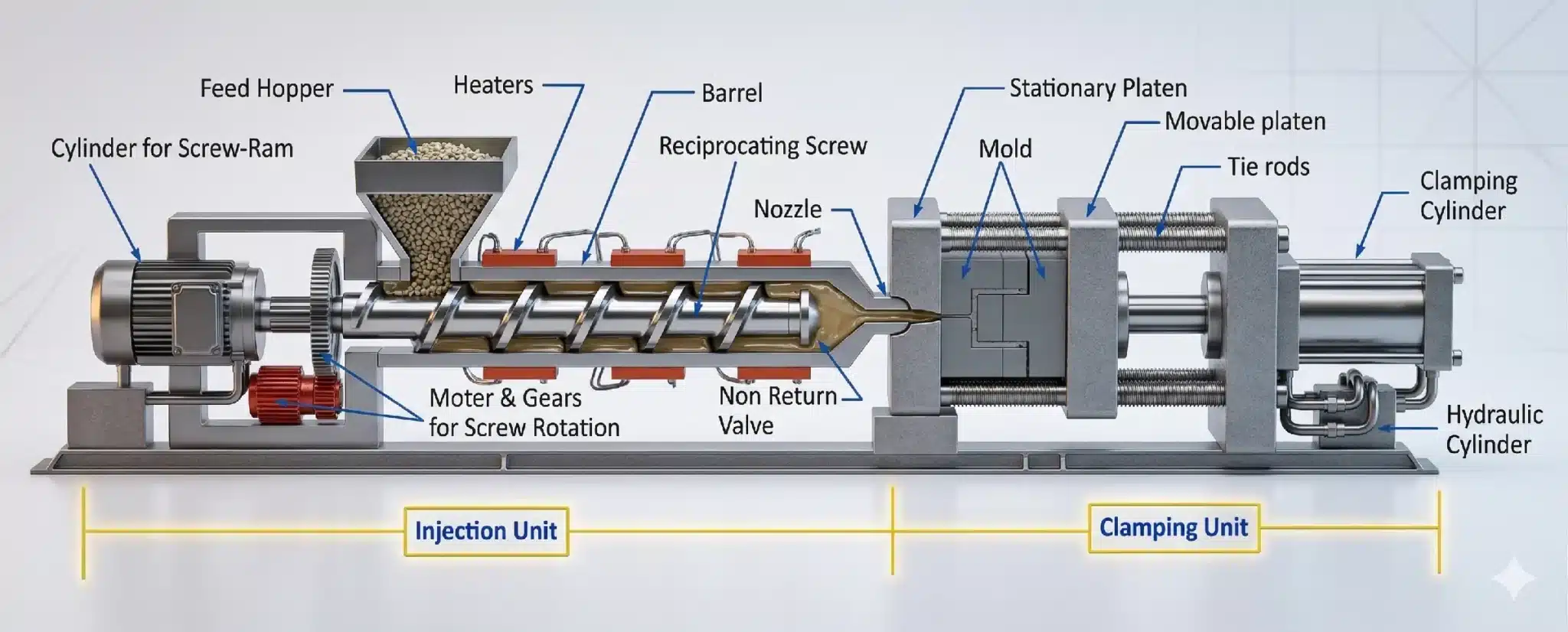

How to Choose Injection Molding Machine: The Core Framework

Choosing an injection molding machine starts with four primary variables: clamping force, shot size, platen dimensions, and drive type. Every other specification follows from these four.

Work through them in order:

1. Define the part geometry and material.
2. Calculate required clamping force.
3. Confirm shot size and screw diameter.
4. Verify that the mold fits the platen.
5. Select the drive technology based on volume and energy goals.
6. Validate against cycle time and controller requirements.
7. Calculate total cost of ownership over the machine’s expected life.

This sequence prevents the most common mistake: buying a machine based on tonnage alone without validating the rest of the specification. This framework is essential during the initial injection molding design process to ensure equipment compatibility.

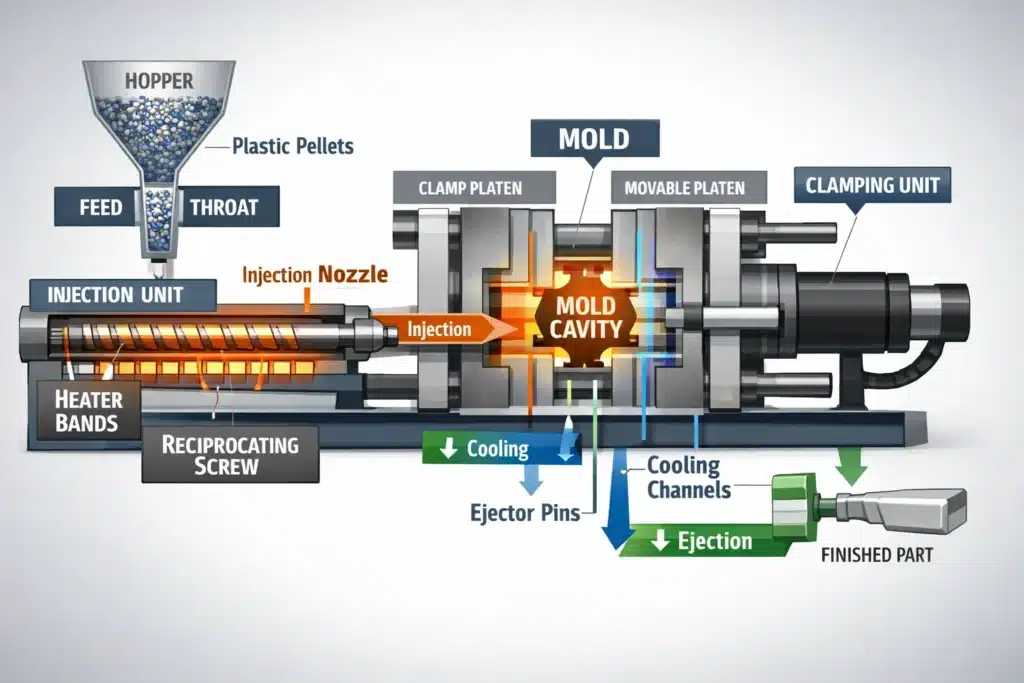

What Is Clamping Force and How Do You Calculate It?

Clamping force holds the mold closed against injection pressure. If the force is too low, the mold flashes—molten plastic escapes the parting line and creates defects.

Basic formula:

Clamping Force (tons) = Projected Part Area (in²) × Cavity Pressure (tons/in²)

Cavity pressure typically ranges from 2 to 5 tons per square inch, depending on material and wall thickness. Thin-wall parts and filled resins push toward the higher end. For technical standards on clamping mechanisms, the Plastics Industry Association provides comprehensive machinery safety and performance benchmarks.

Add a 10–15% safety margin on top of the calculated value. Running a machine at its maximum rated tonnage shortens component life and reduces mold protection effectiveness.

How Does Shot Size Determine the Right Machine?

Shot size is the maximum volume of material the machine can inject in a single cycle. The rule of thumb: the part’s shot weight should fall between 20% and 80% of the machine’s rated shot capacity.

Running too small a shot wastes residence time in the barrel—material degrades from heat exposure. Running too large risks incomplete fill or inconsistent plasticization. This balance is critical to maintaining a stable plastic molding process cycle.

Screw diameter is directly tied to shot size. A larger diameter screw delivers higher shot volumes but lower injection pressure. A smaller diameter screw generates higher pressure, which suits thin-wall or high-viscosity materials. Always verify that the screw diameter matches both your material and your pressure requirements.

Hydraulic vs. Electric vs. Hybrid: Which Drive Type Fits Your Needs?

Drive type affects energy consumption, precision, noise, and maintenance. Here is a direct comparison:

Electric machines dominate in medical, electronics, and optical applications where precision and cleanliness are critical. Hydraulic machines remain the default for large structural parts. Hybrid machines offer a pragmatic balance for manufacturers running diverse part families. You can explore more affordable injection molding solutions by matching the drive type specifically to your product’s tolerance requirements.

What Are Tie-Bar Spacing and Platen Dimensions?

Your mold must physically fit inside the machine. Tie-bar spacing defines the maximum mold width that can be installed. Platen dimensions define the mounting area available.

Check three things:

• Tie-bar distance (horizontal and vertical): The mold must clear the bars.
• Minimum and maximum mold height (daylight): The machine must fully open for part ejection.
• Platen parallelism: Poor parallelism causes uneven clamp load and accelerates mold wear.

Many manufacturers underestimate mold growth at temperature. Always verify the mold’s expanded dimensions at operating temperature, not just its cold dimensions.

Why Do Injection Pressure and Speed Control Matter?

Injection pressure drives material into the cavity. Injection speed controls how fast it fills. Both variables directly affect part quality, sink marks, weld lines, and surface finish. According to Plastics Technology, precise velocity control is the number one factor in reducing internal stress in molded components.

Modern machines offer closed-loop control, where sensors measure actual pressure and velocity in real time and adjust servo outputs accordingly. This matters most for:

• Thin-wall packaging where fill times are under 0.3 seconds
• Optical parts where surface consistency is critical
• Medical components where dimensional tolerances are tight

A machine with coarse pressure resolution or sluggish valve response introduces shot-to-shot variation that no downstream inspection process can fully compensate for. If these parameters aren’t controlled, you’ll find yourself frequently troubleshooting product defects that could have been avoided at the machine level.

What Screw L/D Ratio Should You Specify?

The L/D ratio (length-to-diameter) describes the plasticizing screw’s geometry. A longer screw relative to its diameter provides more residence time for melting and homogenizing material.

General guidelines:

• Standard resins (ABS, PP, PE): L/D of 20:1 is common.
• Engineering resins (nylon, PC, POM): L/D of 22:1 to 24:1 improves melt homogeneity.
• Heat-sensitive resins (PVC, PET): Shorter residence time is critical; match L/D carefully to shot size to avoid degradation.
• LSR (liquid silicone rubber): Requires a dedicated reciprocating screw with cooling to prevent premature cure.

Specifying the wrong L/D causes inconsistent melt temperature, color variation, and decomposition—problems that look like quality issues but are actually equipment mismatches.

How Do Energy Consumption and Efficiency Ratings Affect Your Budget?

Energy is a major operating cost. A hydraulic machine running three shifts can consume substantially more power than an equivalent electric machine. Over a five-year period, the energy savings from an electric machine can offset a significant portion of its higher purchase price. The EUROMAP standards provide the industry-recognized classification for energy efficiency in plastics machinery that you should request from suppliers.

When evaluating machines:

• Ask for specific energy consumption data (kWh per kilogram of material processed).
• Compare idle power draw—hydraulic machines consume power even when idle.
• Consider regenerative braking features on electric machines, which recover energy during deceleration.

Always model energy cost against your actual production hours and local utility rates before making a final decision.

What Controller Features Should You Look For?

The machine controller is your interface for setting, monitoring, and optimizing every process parameter. A capable controller reduces setup time, supports process documentation, and enables data integration.

Key features to evaluate:

• Touchscreen HMI with intuitive navigation
• Process data logging with exportable CSV or JSON formats
• Statistical Process Control (SPC) for real-time trend monitoring
• OPC-UA connectivity for Industry 4.0 integration
• Mold recipe storage for fast changeover
• Remote diagnostics via Ethernet or cloud connection

Industry 4.0 connectivity is no longer optional for manufacturers supplying automotive, medical, or consumer electronics customers. Many tier-1 customers now require machine data as part of their supplier qualification process.

How Do Machine Repeatability and Mold Protection Affect Quality?

Repeatability measures how consistently the machine reproduces the same process conditions cycle after cycle. Shot weight variation under ±0.1% is achievable with electric machines and high-resolution closed-loop control.

Mold protection uses low-pressure, low-speed mold closing combined with tonnage monitoring to detect obstructions before the mold closes fully. This prevents catastrophic mold damage from ejector pins that did not retract, parts that stuck, or robot failures.

Both features reduce your total cost per part. High repeatability reduces scrap. Good mold protection reduces tooling repair costs—which can reach tens of thousands of dollars per incident on complex molds. This is a vital part of the ultimate mold maintenance guide for long-term production success.

Material-Specific Machine Setups: LSR, PVC, and PET

Certain materials require machine configurations beyond the standard setup:

LSR (Liquid Silicone Rubber):

• Requires a cooled barrel to prevent premature cure
• Needs a shut-off nozzle and liquid injection unit
• Mold must be heated to 150–200°C to cure the part

PVC:

• Highly corrosive when degraded; requires bimetallic screw and barrel
• Short residence time is critical—barrel zones must be tightly controlled
• Vented barrel helps remove HCl gases

PET (Polyethylene Terephthalate):

• Requires pre-drying to below 50 ppm moisture
• Intrinsic viscosity (IV) drop from heat exposure limits barrel residence time
• High injection speed is critical for thin-wall preforms

Failing to match machine configuration to material chemistry creates quality defects that are expensive to diagnose if you do not know the root cause.

Total Cost of Ownership: Beyond the Purchase Price

Purchase price is only one component of what a machine actually costs you. TCO includes:

• Capital cost: Purchase price, installation, commissioning
• Energy: Electricity per shift, idle draw
• Maintenance: Scheduled PM, hydraulic fluid, seals, screw wear
• Downtime: Lost production during unplanned repairs
• Spare parts: Availability and lead time from supplier
• Tooling wear: Caused by poor mold protection or repeatability
• Training: Operator and maintenance upskilling
• Auxiliary equipment: Chillers, dryers, robots, conveyors

A machine with a lower purchase price but poor parts availability or high energy draw can cost significantly more over a 10-year horizon than a premium machine with better efficiency and local service support.

Floor Space, Utilities, and Auxiliary Equipment

Before finalizing a machine selection, audit your facility:

• Floor space: Measure the machine footprint plus operator access zones and mold change clearance.
• Power supply: Verify available amperage and phase configuration. Large hydraulic machines may require dedicated transformer upgrades.
• Compressed air: Required for ejection, mold cooling purge, and robot grippers.
• Cooling water: Flow rate and temperature must match machine and mold requirements.
• Auxiliary synchronization: Robots, conveyors, and dryers must communicate with the machine controller via I/O or fieldbus protocols.

Overlooking utility requirements delays installation by weeks and adds unbudgeted facility upgrade costs.

Screw and Barrel Wear: What Abrasive Resins Demand

Glass-filled, mineral-filled, and flame-retardant resins are abrasive. Standard bimetallic barrels and tool steel screws wear rapidly under these conditions.

For filled resins above 20% loading:

• Specify bimetallic barrel with hardened bore (Xaloy or equivalent)
• Use a hardened or tungsten carbide-tipped screw
• Consider nitrided flight lands for additional wear resistance

Screw and barrel wear increases gradually, causing shot-to-shot variation before it becomes visible. Schedule periodic measurement of barrel bore diameter and screw flight clearance as part of your preventive maintenance program.

Decision Table: Matching Machine Type to Application

FAQs

What tonnage do I need for a 10-square-inch part made from ABS?
Using a cavity pressure of 3 tons/in² for ABS, you need approximately 30 tons minimum. Add a 15% margin and target a 35-ton machine. Always verify against actual wall thickness and gate design since both affect cavity pressure.

How do I compare machines from different manufacturers on a level basis?
Request the same set of standardized data from each supplier: dry cycle time, specific energy consumption (kWh/kg), shot weight repeatability (±% standard deviation), and clamp force tolerance. These metrics cut through marketing language and allow direct comparison.

How important is the local service network when choosing a machine supplier?
It is often more important than the machine specification itself. A machine that goes down for two weeks waiting for imported parts costs far more than the price premium for a supplier with U.S.-based technicians and stocked spare parts. Ask specifically about parts lead times and regional service headcount before signing.

Can I run multiple materials on the same machine?
Yes, but material compatibility affects cleaning time, purging cost, and screw wear. Abrasive and non-abrasive resins should ideally be separated onto different machines. If you must share, use a commercial purging compound and track barrel wear more frequently.

What is dry cycle time and why does it matter?
Dry cycle time measures how fast the machine completes an open-close-eject sequence with no material and no cooling. It reflects the machine’s mechanical speed and serves as a benchmark for comparing machines. A faster dry cycle time allows tighter overall cycle times when part cooling is not the limiting step.

How do Industry 4.0 features affect ROI?
OPC-UA connectivity and real-time process data logging reduce setup time, support traceability documentation, and enable predictive maintenance. For manufacturers supplying automotive or medical customers, these features can be a qualification requirement rather than a nice-to-have—making them a revenue enabler, not just a cost item.

Conclusion

Understanding how to choose injection molding machine correctly is not a one-time task—it is a structured process that requires aligning part requirements, material properties, production volumes, and facility constraints before any capital commitment. The biggest mistakes in machine selection come from narrowing the decision to tonnage and price while ignoring drive technology, controller capability, total cost of ownership, and supplier support.

For marketers involved in product development or procurement, the ability to speak fluently about these variables strengthens supplier relationships, reduces specification errors, and protects project timelines. Work through the core framework outlined here, build your own TCO model for each shortlisted machine, and verify material-specific requirements before finalizing any purchase.
