Hot Runner Thermal Control
6 Heating Systems for Hot Runner Manifolds in Injection Molds
Uniform thermal transfer between heating elements and the hot runner manifold block determines whether a multi-cavity injection mold runs stably or suffers premature heater burnout. Heater bores and channels must be precision-reamed or ground smooth so air gaps do not insulate the heater sheath.
- 6 Core Heating Technologies: Band heaters, coil heaters, cartridge heaters, flexible tubular heaters, cast-in integral heaters, and hybrid heat pipes.
- Cold Start-Up Protection: Never run cartridge or tubular heaters at 100% power from a cold state; apply low voltage for the first 15 minutes to bake out moisture and prevent element rupture.
- Dimensional Benchmarks: Standard band heaters run up to 100 mm Ø × 150 mm; cartridge heaters up to 20 mm Ø × 350 mm; flexible tubular heaters use 6–8 mm Ø up to 1000 mm long (240V).
Selecting the right heating element for a hot runner system depends on whether you are heating external cylindrical nozzle bodies, flat manifold plates, or remote gate tips. Below are the six primary heating systems used in modern hot runner tooling:
| Heater Type | Standard Dimensions / Voltage | Primary Tooling Application | Thermal & Maintenance Characteristics |
|---|---|---|---|
| Band Heaters | Up to 100 mm Ø × 150 mm long (Mains / low V) | External barrels, sprue bushes, cylindrical manifolds | Mica or ceramic insulation; uniform heat across width |
| Coil Heaters | 240V standard; compact nozzle diameters | Hot runner nozzle bodies requiring thermal gradients | Variable coil pitch compensates for gate tip heat loss |
| Cartridge Heaters | Up to 20 mm Ø × 350 mm long | Manifold blocks, internally heated nozzle probes | Requires reamed H7 bore fit and 15-min soft start-up |
| Tubular Heaters | 6–8 mm Ø, lengths up to 1000 mm (240V) | Non-linear 3D milled grooves in manifold plates | Semi-flexible sheath; potted with conductive cement |
| Integral Heating | Cast-in high-resistance insulated wire | Specialist internally heated torpedoes and bushes | Eliminates air gaps; non-replaceable if wire fails |
| Heat Pipes | Micro-diameter sealed phase-change rods | Inaccessible manifold corners and tight nozzle tips | Transfers heat from accessible heaters with zero moving parts |

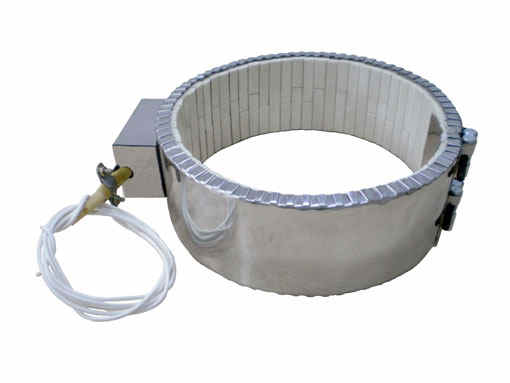

Band Heaters
Band heaters clamp around external cylindrical surfaces such as injection barrels, nozzles, and tubular manifolds. Insulated with mica or ceramic cores, band heaters deliver even radial heat distribution across their width and come in standard sizes up to 100 mm diameter by 150 mm length (with custom wattages built to order). Most systems run on standard mains voltage, though low-voltage safety bands are available for specialized medical or cleanroom tools.
Coil Heaters
Coil heaters wrap around cylindrical hot runner nozzles where uniform linear heating is undesirable because conductive heat loss is higher at the gate tip and manifold flange than in the middle of the nozzle.
By winding the resistance coils tightly at the nozzle tip and spacing them further apart along the center shank, coil heaters create a tailored thermal gradient. Operating primarily at 240 volts, coil heaters fit tighter nozzle envelopes than mica band heaters.

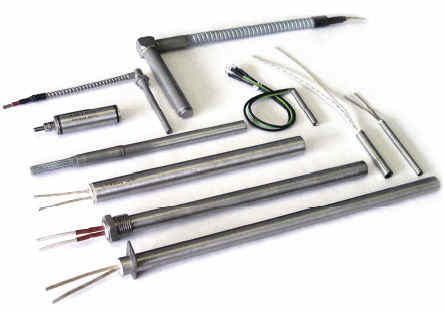

Cartridge Heaters
Cartridge heaters slide into gun-drilled bores to heat flat hot runner manifolds, internally heated nozzles, and high-temperature thermoset or PEEK molds. Standard catalog sizes reach up to 20 mm in diameter and 350 mm in length across multiple watt densities.
Never apply full power to a cold cartridge heater: hygroscopic magnesium oxide insulation inside the cartridge absorbs atmospheric moisture when the mold sits in storage. Apply a low preheat voltage (or soft-start temperature ramp) for the first 15 minutes to drive out moisture before switching to full operating power.
Intimate metal-to-metal contact between the cartridge sheath and the manifold bore is mandatory. If an existing mold has oversized or rough bores that cause repeated heater burnout, coating the cartridge with high-temperature conductive heat-transfer paste extends service life—though a precision-reamed smooth bore remains the permanent engineering fix.
Tubular Heaters
Tubular heaters share the internal construction of cartridge heaters but use a semi-flexible metal sheath (typically 6 to 8 mm in diameter and up to 1000 mm long at 240 volts) that can be bent into contoured 3D grooves milled across the manifold face.
When pressed into smooth grooves and operated with the same 15-minute low-power start-up rule and full surface contact guidelines, tubular heaters provide long, trouble-free production runs.
Integral Heating
Integral heating casts electrically insulated, high-resistance heating wire directly inside the molten metal of the manifold block or internal torpedo probes during component fabrication. While integral casting eliminates air gaps completely, it is reserved for specialized aerospace or miniature multi-tip nozzles where external heaters cannot fit.
Heat Pipes
Conventional cartridge and tubular heaters can only be installed in accessible manifold zones, leaving tight corners or closely spaced gate drops under-heated. Heat pipes (sealed vacuum rods utilizing internal phase-change fluid) bridge this gap by conducting thermal energy from an accessible primary heater directly into remote manifold zones with near-zero temperature drop.
Available in smaller diameters than cartridge heaters, heat pipes simplify heater wiring, eliminate cold spots in complex manifolds, and require smooth, tight bore contact to transfer heat efficiently.
