Designing Bosses for Injection Molding: A Complete Guide

Designing Bosses for Injection Molding: A Complete Guide

Designing bosses for injection molding means thinking about several things so the part is strong, can be molded easily and looks good. Here you’ll find a complete guide:

bosses design

Designing Bosses for Injection Molding

Interactive reference: boss anatomy, a live boss designer, boss types, screw details, defects and material guidelines. Hover or tap any number on the drawings.

1. Boss anatomy
123456789
Key dimensional rules
Boss wall t0.5–0.6 × T
Outer diameter≈ 2 × screw d (2.5 × glass-filled)
Pilot hole≈ 0.8 × d (screw maker's chart)
Height H≤ 3 × OD; gussets above 2 × OD
Draft0.5–1° per side, inside and out
Base fillet R0.25–0.5 × T
Thread engagement2–2.5 × d

Why 0.5–0.6 × T? A boss wall as thick as the part wall cools much later than the wall around it; the late-shrinking plastic pulls the show face in (sink) and can leave voids inside.

2. Live boss designer – drag the sliders
OD–
Pilot hole–
Boss wall–
Height–

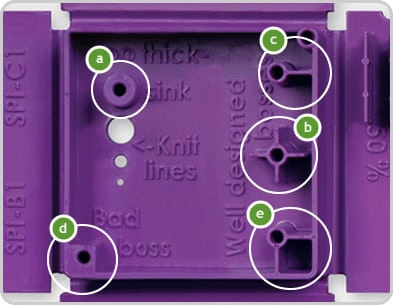

    3. Common boss types
    Standalone boss
    Tied only to the base wall. Fine for light loads and short bosses (height up to about 2 x OD). Core it and keep the wall at 0.5-0.6 x T so the show face does not sink.
    4. Screw boss details
    2–2.5 d123456
    Thread-forming screw bosses
    • →Pilot hole from the screw maker's chart (about 0.8 × d)
    • →Engagement 2–2.5 × d; hole deeper than the screw tip
    • →0.5 mm chamfer or short counterbore at the entry
    • →OD about 2 × d (2.5 × for glass-filled)
    Heat-set / ultrasonic insert bosses
    • →Hole size and taper from the insert maker's spec
    • →Boss OD about 2 × insert OD
    • →Hole deeper than the insert so displaced plastic has room
    Molded-in insert bosses
    • →Uniform wall around the insert to limit hoop stress
    • →Knurls or grooves on the insert for pull-out and torque
    • →Pre-heat inserts to cut residual stress
    5. Design do’s and don’ts
    ✓ Do
    • ✓Keep the boss wall at 50–60% of the nominal wall
    • ✓Use gussets or ribs on tall bosses
    • ✓Core the boss so it is a tube, not a solid post
    • ✓Draft 0.5–1° inside and outside
    • ✓Keep bosses away from outside corners
    • ✓Radius the base 0.25–0.5 × T
    • ✓Tie bosses near a side wall to it with a thin rib
    ✗ Don’t
    • ✗Make the boss wall as thick as the part wall
    • ✗Merge a boss straight into a side wall
    • ✗Go above about 3 × OD unsupported
    • ✗Leave bosses solid – they always sink
    • ✗Space bosses closer than 2 × OD
    • ✗Leave a sharp corner at the base
    • ✗Skip draft – zero-draft bosses stick and scuff
    6. Defects caused by poor boss design
    High riskSink marks
    Thick boss walls or a heavy root shrink late and pull the show face in. Fix: boss wall 0.5–0.6 × T, core the boss, moderate fillet.
    High riskVoids
    The skin freezes before the thick core of a solid boss, leaving bubbles inside. Fix: core the boss, keep walls uniform.
    Medium riskWeld lines
    Melt splits around the core pin and meets on the far side - a weak spot when the screw is driven. Fix: gate so fronts meet hot and at a shallow angle.
    Medium riskWarpage
    The boss area shrinks differently from the wall around it. Fix: uniform walls and cooling close to the bosses.
    Lower riskCracking at the base or rim
    Sharp roots, too-small OD or the wrong screw split the boss. Fix: base fillet, OD about 2 × d, screws made for plastics.
    Lower riskSticking on ejection
    No draft on the core pin or outer wall. Fix: 0.5–1° draft, polished core pins, ejector sleeve on deep bosses.
    7. Quick reference – dimension ratios
    ParameterRecommendedNotes
    Boss wall thickness0.5–0.6 × TT = nominal part wall
    Boss OD≈ 2 × screw d2.5 × for glass-filled
    Pilot hole≈ 0.8 × dFollow the screw maker’s chart
    Height≤ 3 × ODGussets above 2 × OD
    Draft0.5–1° per sideInside and outside
    Base fillet0.25–0.5 × TLarger radii add mass at the root
    Thread engagement2–2.5 × dHole deeper than the screw tip
    Rib / gusset thickness0.5 × TThicker ribs sink
    Boss to side wallRib-connectedDo not merge into the wall
    Boss to boss≥ 2 × OD centre to centreAvoids merged thick sections
    8. Material-specific considerations
    Standard
    Unfilled thermoplastics (ABS, PC, PP)
    Standard rules apply. Good ductility makes them forgiving with thread-forming screws.
    Caution
    Glass-filled (PA-GF, PBT-GF)
    Raise OD to about 2.5 × d. Fibres add stiffness but cut ductility, and weld lines are weaker – place gates carefully.
    Critical
    Semi-crystalline (POM, PA, PBT)
    Higher shrinkage makes uniform walls even more important. Core every boss; consider heat-set inserts for repeated assembly.
    Special
    Soft / flexible (TPE, TPU)
    Screw bosses rarely work. Use metal inserts or snap features instead.
    Not sure your bosses will sink or crack? Send the CAD – we check every boss in a free DFM review.Get a free DFM review
    Embed this reference on your site

    Free to use. Please keep the credit link.

    1. How and Where a Button is Used

    Function: Bosses are normally cylindrical shapes put in place to attach screws, threaded inserts or to act as guides for mating parts.
    Spreading out the bosses prevents the stress from focusing in one area which could result in part failure. Distribute your advertisements in ways that make sense.
    Bosses Should Be Close to Walls: Adding bosses near thick walls or connecting them to sidewalls with ribs or gussets helps them become stronger and more stable. Don’t put bosses in spots that will create a thick space that is hard to keep cool.
    Whenever it is convenient, put bosses on the inside of the part so they are less likely to get damaged.

    2. Wall Thickness

    Injection molding boss wall thickness

    The thickness of a boss should usually be between 40% and 60% of the nominal wall thickness in the part. Always do this to stop the opposite side from forming sink marks.

    Don’t Get Sink Marks: As metal cools, thick areas take more time than thin areas. If the boss wall is too thick compared to the rest, it will shrink more, forming a depression on the part’s top surface that shows.
    Building vs. Breaking: While bosses should have enough wall to support fasteners, going past 60% thickness greatly increases the likelihood of sink marks and hollow spots. You might need to use ribs or gussets if the boss isn’t strong enough when you only thicken the wall.
    Different plastics have different amounts of shrinkage. Materials subject to greater shrinkage often need the boss walls to be even thinner than normal.

    3. length

    A boss should usually be no more than three times as tall as its outer diameter. Thick bases on tall bosses may cause cooling problems, lead to sink marks and increase the time it takes to make the part. The inside of the boss which is formed by tall, thin core pins, is not easy to cool and can bend during the molding process.

    Maintain Proper Engagement: Be sure the boss’s height allows plenty of engagement with the screw (at least 60% of its thread). The OD of the boss should be between 2.0 and 2.5 times the diameter of the screw or insert it will fit. You end up with strength that isn’t overbuilt.

    4. Draft Angles

    bosses design guide
    bosses design

    It is important for ejection that the inner and outer walls of the boss both have a slight taper (draft). A lack of draft may produce drag marks, harm the part or harm the mold.

    • A minimum of 0.5 degrees is generally suggested for Outer Diameter (OD) Draft. A lot of sources recommend setting your oven to 1 to 2 degrees for most recipes.
    • Recommended ID draft: The minimum should be between 0.25 and 0.5 degrees. If the part has a textured surface, increase the draft angle by 1 or 2 degrees or more to ensure it won’t scrape.
    • Softer, bendy materials may reduce draft somewhat more than rigid and highly shrinking ones. If your boss is tall, you’ll need to draft more than usual. A rule of thumb is to add another degree for every inch of depth.

    5. Support for Your Garment Comes from Ribs and Gussets

    A better way than making boss walls thick is to use ribs or gussets that join the boss to surrounding walls or reinforce standalone bosses. Because of this, the surface is more rigid and the material moves better, but sink marks are avoided. The ribs beneath the bosses must also have a wall thickness that is 40-60% of the nominal wall thickness of the main structure. Link the ribs to the outline of the boss outer edge. Don’t leave a thick part of the rib at the boss base when trimming it.

    6. The Terms Used to Describe the Outside Shape of a Leg Joint are Radii and Chamfers

    Include a wide radius at the bottom of the boss, where it touches the part it’s attached to. A radius that is between 0.25 and 0.5 times the nominal wall thickness is suggested. As a result, stress does not accumulate in one area and material flow is smoother. Don’t let the radii become too big and cause your parts to have thick sections.Add a radius or chamfer at the place where the boss hole meets the counterbore. It helps to start the fastener and lower the amount of pressure on the core pin.Avoid using sharp corners in bosses since they collect stress and may stop materials from flowing properly.

    7. How Far Apart Are the Bosses?

    If you have more than one boss, leave at least 2 times the wall thickness of the part between them. As a result, cooling is better controlled, the steel does not become too thin in the mold and weld lines are less likely to be a problem.

    8. How to Prevent Sink Marks

    sinks
    sinks

    Stick to the rule of having bosses and supporting ribs at least 40% but not more than 60% of the tube’s wall thickness.Thick bosses that rely on strength should be cored out in the base or underside to ensure the walls are uniform. Occasionally, a small groove across the bottom of the boss will make it easier to slide the pin.Place the gate so that bosses won’t damage the opposite side of your sculpture. Pushing into a thicker part of the design can sometimes help crowd the area, yet this needs to be thought through to keep other problems away.

    Setting the right molding conditions (temperature of the melt, pressure used for packing, amount of time for packing and temperature of the plastic mold) helps to reduce sink.

    9. Material Selection

    Keep in mind the shrinkage rate of the plastic, as it can result in sink marks and trouble with the object’s measurements.

    The material should be strong enough, stiff enough and able to withstand the temperatures required for the boss’s purpose. The type of fastener such as a self-tapping screw or threaded insert can decide the right material to use and the details of the boss hole.

    10. The Site of Gates and How They Are Vented

    Do not put a gate on top of or close to a critical feature such as a boss, because it can cause problems with its look or strength. Still, sometimes keeping the gate near the boss helps guarantee the boss will fill. Bosses which are formed by blind holes in the mold may need venting (by using vent pins at the edge) to let gases escape while the mold is being filled, avoiding both short shots and burns.

    What Should Bosses Check in Their Designs?

    • Thickness of part walls should be within 40-60% of their nominal value?
    • Measure the height; is it less than 3 times the outer diameter?
    • Does the object’s draft have to be at least 0.5 degrees for texture/depth?
    • ID Draft: More than 0.25 degrees?
    • For a Base Radius, use a range of 0.25 to 0.5 times the wall thickness from the nominal size?
    • Support: Gussets or ribs added to tall or single bosses? About 40-60% of the wall is covered by ribs.
    • For walls built together, is there at least 2x the wall thickness separating each one?
    • A review of sink mark risk was done and solutions were found?
    • Properties of Materials: Can this material be used and fastened together?
    • Under these conditions, does the draft and radius help with ejection and lower stress?

    When you use these tips, your bosses will have the needed strength and flexibility for your plastic part and will be less likely to have defects after manufacture. You should always advise with a professional mold designer or injection molding supplier when developing your design.

    ParameterRecommended ValueReason
    Thickness (t)0.5 ~ 0.7 times product wall thickness (T)Too thick can cause surface sink marks; too thin provides insufficient strength.
    Height (h)2 ~ 3 times thickness (t), not exceeding 5 timesToo high may cause warping or uneven cooling; consider mold depth.
    SpacingAt least 2 times wall thickness (T)Ensures even filling and avoids weak spots in thin areas.
    Bottom Fillet RadiusAt least 0.25 ~ 0.5 times thickness (t)Reduces stress concentration, improves strength, and enhances flow.
