Is Injection Molding the Right Choice? Key Factors to Consider

Is Injection Molding the Right Choice? Key Factors to Consider

Injection molding is a popular manufacturing process used to produce plastic parts at high volumes. But how do you know if it’s the best option for your particular product?

There are several key factors to weigh when determining if injection molding is the optimal process. In this comprehensive guide, we’ll explore the core considerations for choosing injection molding.

Understanding these criteria allows you to make an informed decision about the ideal manufacturing method for your plastic components.

Production Volume

One of the biggest considerations is production volume. Injection molding involves high initial costs for the metal molds. This tooling investment might run from $5,000 to $100,000+ depending on part size and complexity.

However, once the mold is fabricated, the incremental cost of each individual part is very low. This makes injection molding ideal for large production runs in the thousands or millions of units. The efficiency of the process results in very low per-part costs at volume.

 For example, if the mold and tooling costs are $10,000, the cost per part for 100 pieces would be $100, whereas the cost per part for 100,000 pieces would be only $0.10

Conversely, for lower production quantities like hundreds or less, injection molding becomes far less economical. The cost of the mold cannot be distributed across as many parts, raising the per-unit price. For short runs, other processes like CNC machining or 3D printing may be more cost-effective.

In essence, injection molding is optimized for high-volume plastic production when the initial mold cost can be amortized over a large number of cycles.

Part Complexity

Another advantage of injection molding is the ability to manufacture highly complex plastic components. The mold cavity can accommodate delicate features, complex 3D geometries, and tight tolerances.

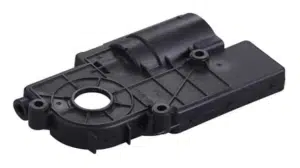

injection molding

This enables consolidation of multiple parts into a single injection molded component. For instance, a molded plastic housing might integrate hinges, threaded inserts, attachment points, wire management features, and more all in one piece.

The flexibility of injection molding allows for multi-functional plastic parts that simplify product assemblies. Other processes like machining or printing cannot match injection molding’s cost-effectiveness and precision for complex components.

Material Options

Injection molding supports a wide range of plastic materials with unique performance properties. Popular options include:

  • ABS – Strong, durable, and low cost
  • Polycarbonate – Clear, heat/impact resistant
  • Acetal – Low friction, chemical resistant
  • Nylon – Wear-resistant, flexible strength
  • PET – Clear, shatter-resistant
  • TPU – Soft, flexible, and elastic

Specialty resins are also available with specific characteristics like weather/UV resistance, flame retardancy, and medical biocompatibility.

Injection molding allows combining two or more materials together for hybrid parts. This enables customizing the material properties in different regions of a component as needed.

The wide material selection ensures finding plastics suited for nearly any environment or application.

Color and Texture Options

Aesthetic flexibility is yet another injection molding benefit. Plastic resins come in every color imaginable, enabling products with bright, vibrant hues.

Multi-shot injection molding also enables manufacturing parts with multiple colors in a single operation. This allows color coding parts or having bold accent colors for branding.

Textures and surface finishes are also readily achievable. Injection molding can produce glossy, matte, soft touch, and other unique finishes. Parts can even be embellished with laser engraved logos or textures.

All these effects are molded directly into the plastic, eliminating secondary finishing steps. The aesthetic possibilities are nearly endless.

Repeatability and Reliability

Once an injection mold is finely tuned, it will produce extremely consistent parts from cycle to cycle. Thousands of units can be manufactured with minimal variations in dimensions or performance.

This repeatability makes injection molding ideal for products requiring tight tolerances and precision. The process also ensures each part meets the exact same quality standards. No manual intervention is needed as every shot produces an identical component.

The consistency achievable with injection molding enables high reliability even in the harshest operating conditions. Parts perform predictably without deviation or degradation over time.

Design Considerations

While injection molding offers tremendous flexibility, the part design must account for the process requirements. Some key design principles include:

  • Uniform wall thickness to prevent sinks/voids
  • Draft angles on surfaces to enable demolding
  • Radiused corners to alleviate stress concentrations
  • Strategic placement of weld lines away from critical areas
  • Proper gate and vent locations for optimal fill
  • Ribs and gussets to add rigidity and strength

In essence, the part geometry must be optimized for moldability, performance, and durability. Experienced injection molding designers understand these considerations to ensure a successful outcome.

The Potential Drawbacks of Injection Molding

While injection molding has many benefits, it also has some limitations to consider:

High Initial Tooling Costs

As mentioned earlier, the injection molds require a significant upfront investment, often costing thousands to tens of thousands of dollars. For companies on tight budgets or with limited production needs, this initial cost may be prohibitive.

Part Design Restrictions

Injection molding places some constraints on part geometries. Trying to mold overly complex shapes often results in defects. There are workarounds but typically at added cost. The design freedom is not unlimited as with 3D printing.

Lead Time Considerations

After designing the part and tools, there is still significant preparation time. The mold must be machined, tested, and tuned, which can take weeks or longer. This lead time may not suit projects with urgent deadlines.

Conclusion – Weighing the Factors for Injection Molding

Injection molding offers an affordable way to manufacture intricate, high-quality plastic components – provided the volumes, design, and materials align with the process strengths.

Carefully considering the core factors covered here will determine if injection molding is truly the best option for your particular product.

For most medium and high-volume plastic manufacturing, injection molding is an excellent choice. The efficiencies, precision, and flexibility simply cannot be matched. However, for certain applications, alternative methods may prove better suited depending on the specific requirements.

By understanding the key criteria that impact costs, quality, and lead times, you can make the right strategic decision for your project. Injection molding provides phenomenal benefits when applied successfully – and potential pitfalls when poorly matched to the product goals. Weighing these critical factors ensures you pick the optimal manufacturing process.
